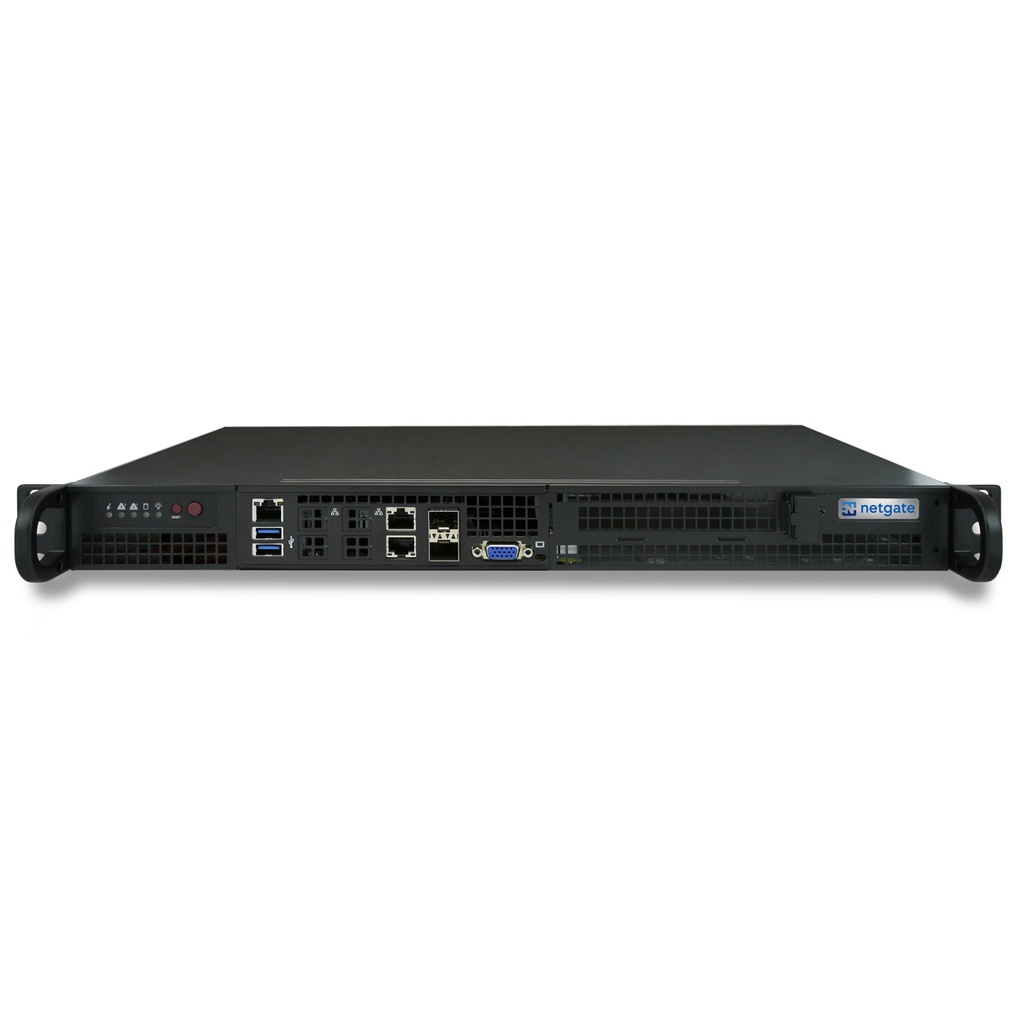

Netgate 1537 BASE pfSense+ Security Gateway (8GB / 500GB)

    3,370.50 3370.5 AUD 3,370.50

    3,370.50

    This combination does not exist.


    Netgate 1537 BASE pfSense+ Firewall Appliance
    Intel Xeon-DE D-1537 1.7 GHz FCBGA 1667 + SoC
    8GB RAM / 256GB M.2 SSD
    2 x 10GbE SoE SP+ / 2 x 1GbE / 2 x USB
    1 x IPMI / VGA Console


    All Prices ex GST.
    Checkout for GST and shipping costs.
    We aim to dispatch all in-stock orders within 24 hours.

    Please note the normal lead time for this product is 2 to 4 weeks.


    CPUIntel "Xeon-DE" D-1537, 1.7 GHz FCBGA 1667 supported SoC
    CPU CoresEight Cores, 16 Threads, 35W
    NetworkingDual 1GbE RJ45 LAN via Intel® i350-AM2
    Dual 10G SFP+ LAN via SoC
    Virtual Machine Device Queues reduce I/O overhead
    Supports 10GBASE-T, 1000BASE-T
    Storage500 GB M.2 SSD
    Memory8 GB ECC DDR4 RDIMM (expandable to 32 GB)
    Expansion1x PCI-E 3.0 x 16 slot
    M.2 PCI-E 3.0 x4 (SATA support) M Key 2242/2280
    6x SATA3 (6 Gbps) ports via SoC
    Other Ports1x BMC integrated ASPEED AST2400
    1x IPMI RJ45 Dedicated Port (Realtek RTL8201N PHY)
    1x VGA Port (Aspeed AST2400)
    1x SuperDOM power connector
    1x COM
    Headers for TPM, GPIO, SMbus
    USB Ports2x USB 3.0 ports (front)
    2x USB 2.0 ports (via header)
     LEDPower LED
    Hard drive activity LED
    2x Network activity LEDs
    System Overheat LED
    Information LED (temp., status)
    Enclosure19" 1U Rack Mount
    Form Factor1U 1.7"x17.2"x9.8"
    Cooling200W Low-noise PS with PFC: Active CPU fan, 40mm chassis fan
     Power

    1x SATA DOM power connector

    100-240V, 50-60Hz, 2.6 Amp MAX
    AC Inlet: IEC320-C14 (3 PIN)
    Power Cord: NEMA 5-15P to IEC320-C13

    Environmental0°C to 60°C Operating Temp
    8% to 90% Operating Relative Humidity (non-condensing)
    Power Consumption20 W (idle)
    CertificationsFCC, CE, RoHS, UL
