Netgate 4100 BASE pfSense+ Security Gateway Appliance

    952.30 952.3000000000001 AUD 952.30

    952.30

    This combination does not exist.


    Netgate 4100 Base pfSense+ Firewall Appliance
    1.8 GHz Intel® Atom® C3338R with QAT, 2-core
    4 GB DDR4 Memory / 16 GB eMMC
    2 x 1GbE (Combo) WAN / 4 x 2.5 GbE RJ45 "direct" LAN
    2 x 3.0 USB / MicroUSB + RJ45 Console (Cisco pinout)


    All Prices ex GST.
    Checkout for GST and shipping costs.
    We aim to dispatch all in-stock orders within 24 hours.

    CPU

    Intel® Atom® C3338R with QAT, 2-core @ 1.8 GHz (Denverton family)

    CPU Cores

    Dual Core

    Physical Network I/O ports

    (2) Auto media detect 1 Gbps (RJ45 copper / SFP fiber) Combo WAN ports

    (4) 2.5 Gbps RJ-45 "direct" (unswitched) ethernet  LAN ports

    Storage

    16 GB eMMC (onboard - soldered)  upgradable to 128 GB NVMe M.2 SSD with 4100 Max

    Memory

    4 GB DDR4 w/o ECC, single channel

    Physical Expansion Card Slots

    1x m.2 (Key-B slot) NVMe (PCIe)

    Console Port

    1x auto-detect console port: "Cisco pinout" RJ45 + micro-USB (micro-USB cable included with each system)

    USB Ports

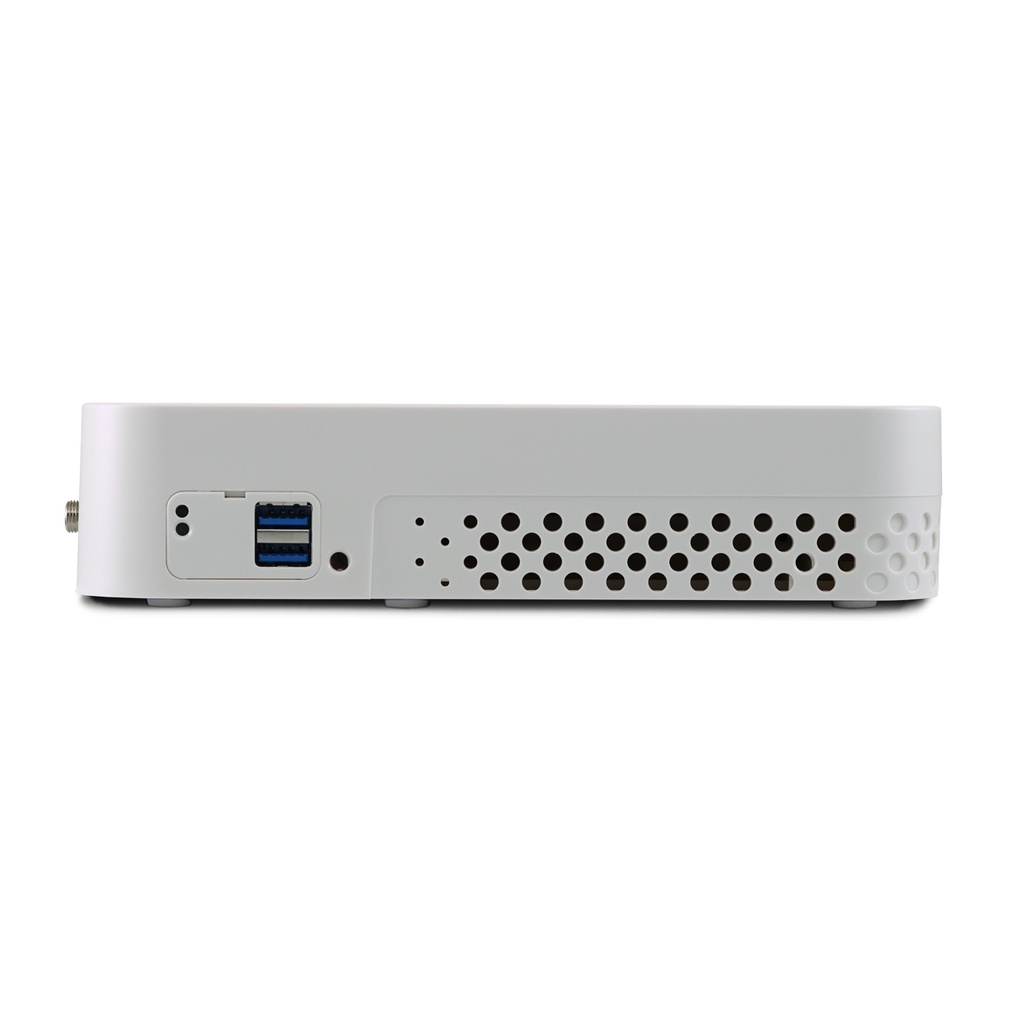

    2x USB 3.0 jacks (USB-A female) Located on left side rear when viewed from system front

    LED

    3x 4-color LEDs (RGB + amber) Software / bootloader controllable via Microchip MCU

    Enclosure

    Desktop - Aluminum, plastic, and steel enclosure.
    10 x 7.88 x 1.88 inches
    254 x 200 x 47.63 mm

    Mounting

    Optional wall or rack mount kit

    Cooling

    Passive

    Power

    External ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 5.0A (60W), threaded (locking) barrel connector
    - AC Inlet: IEC320-C7 (2 PIN) -
    - Power Cord: One US, UK, EU or ANZ power cord included depending on the regional system SKU on box.
    - US Power Cord: NEMA 1-15-P to IEC320-C7
    - UK Power Cord: BS 1363 to IEC320-C7
    - EU Power Cord: CEE7/16 to IEC320-C7

    Environmental

    0°C (32°F) to 40°C (104°F) - ambient

    CertificationsCE, CB, FCC (Class B), RoHS, CCATS, UL, RCM
