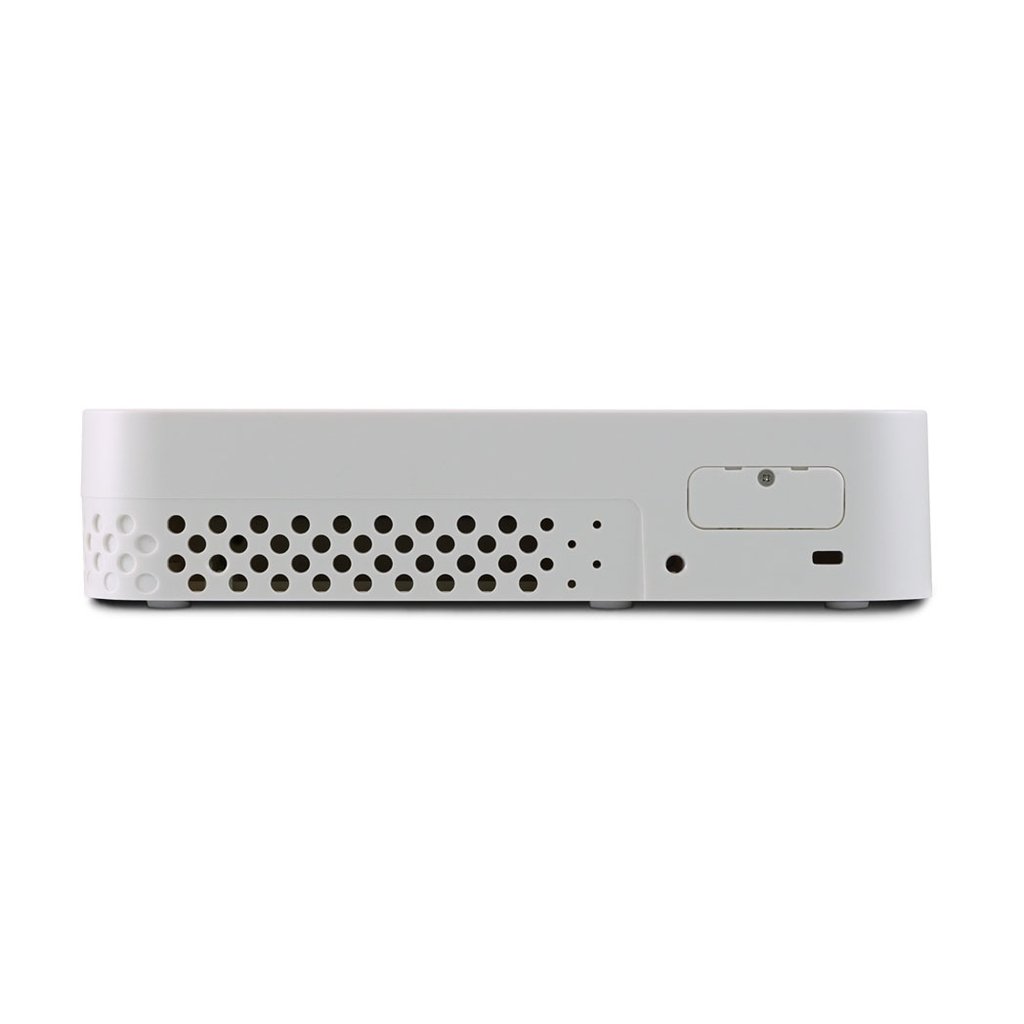

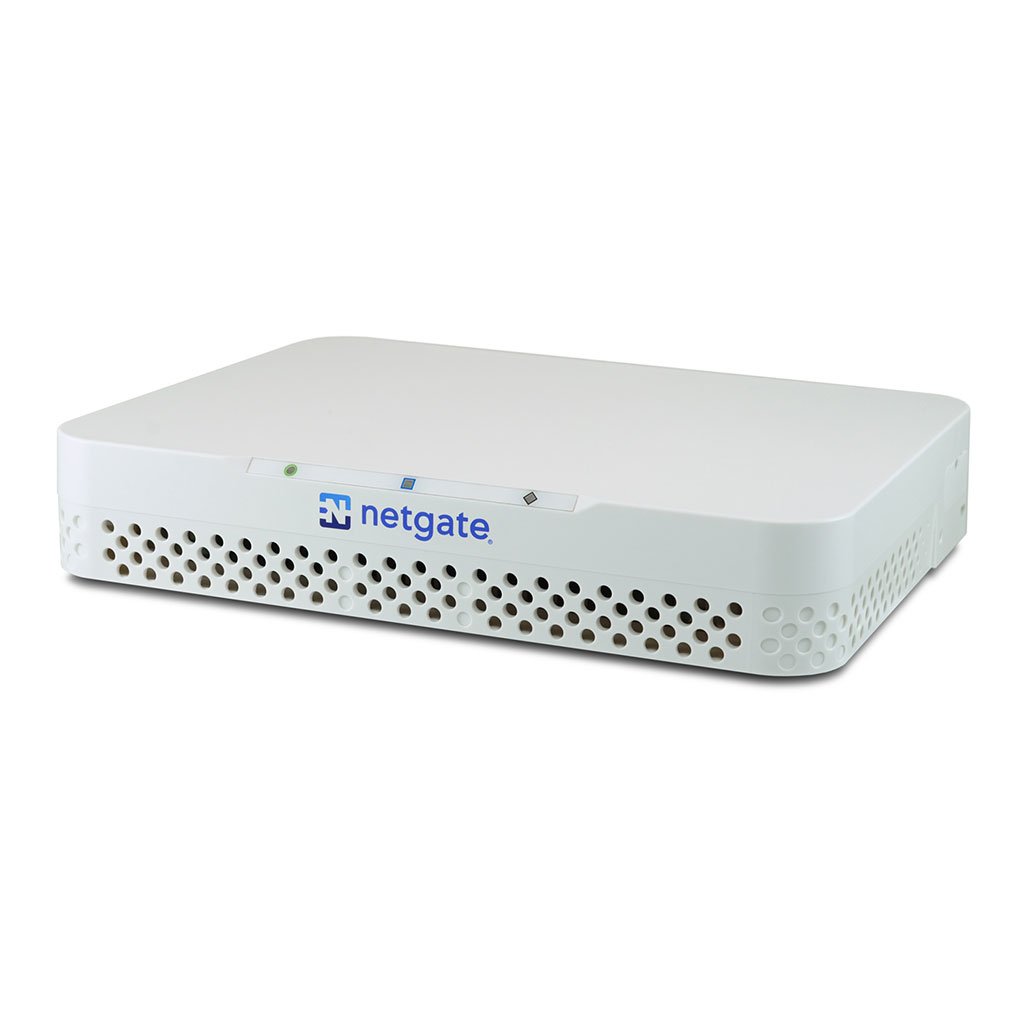

Netgate 6100 BASE pfSense+ Security Gateway Appliance

    1,251.90 1251.9 AUD 1,251.90

    1,251.90

    This combination does not exist.


    Netgate 6100 BASE pfSense+ Firewall Appliance
    2.2 GHz Quad-Core Intel® Atom® C3558
    8 GB DDR4 Memory / 16 GB eMMC
    2 x 10 Gbps SFP+ WAN ports / 2 x 1 Gbps (Combo) WAN
    4 x 2.5 Gbps RJ45 "direct" LAN
    2x 3.0 USB / MicroUSB + RJ45 Console (Cisco pinout)


    All Prices ex GST.
    Checkout for GST and shipping costs.
    We aim to dispatch all in-stock orders within 24 hours.

    CPU

    Intel® Atom® C3558 with QAT, 4-core @ 2.2 GHz (Denverton family)

    CPU Cores

    Quad Core

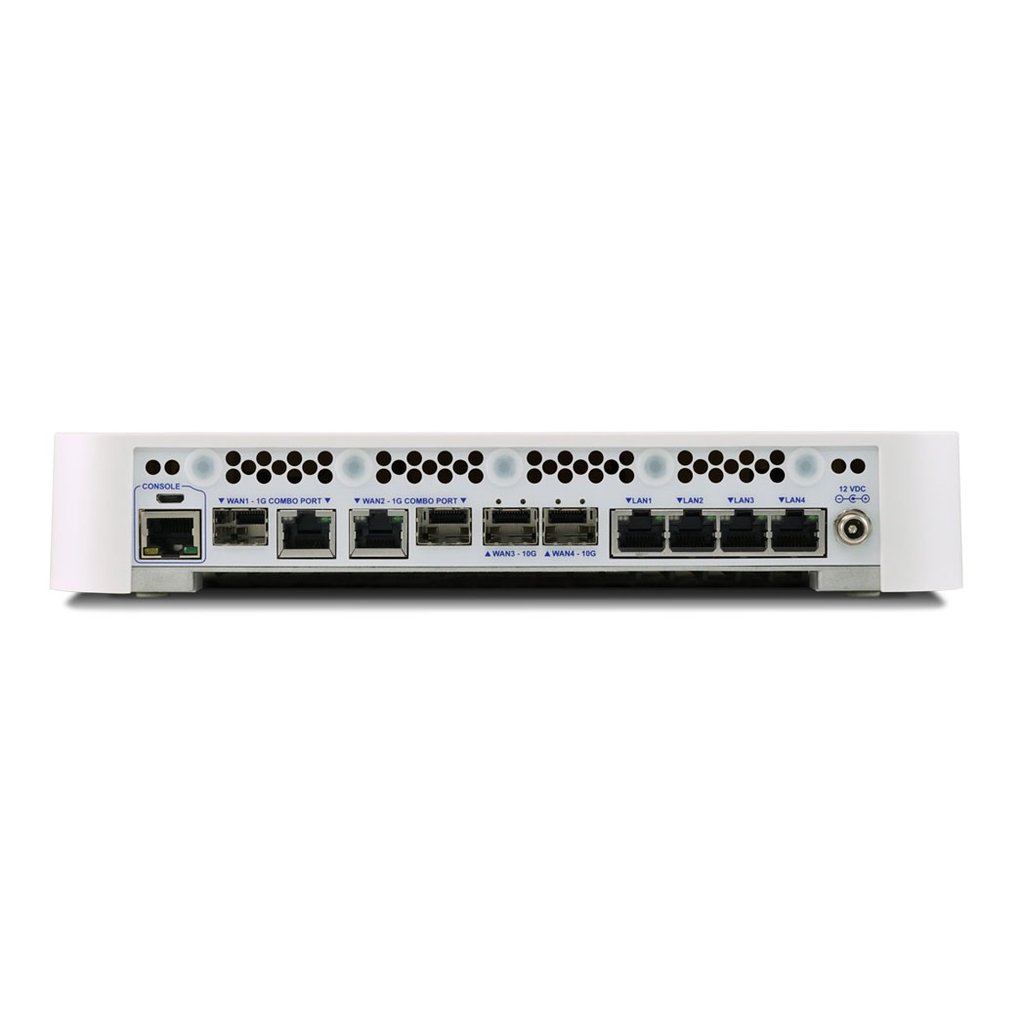

    Physical Network I/O ports

    (2) 10 Gbps SFP+ cage (WAN)

    (2) Auto media detect 1 Gbps (RJ45 copper / SFP fiber) "Combo Port" (WAN)

    (4) 2.5 Gbps RJ-45 "direct" (unswitched) ethernet (LAN)

    Storage

    16 GB eMMC (onboard - soldered)  upgradable to 128 GB NVMe M.2 SSD with 6100 MAX

    Memory

    8 GB DDR4 w/o ECC, single channel

    Physical Expansion Card Slots

    2x m.2 (Key-B slot) with dual-SIM (LTE, Wi-Fi, or NVMe) (PCIe, USB 2.0, USB 3.0)  1x Mini-PCie Slot (Wi-Fi Only)

    Console Port

    1 x auto-detect console port: "Cisco pinout" RJ45 + micro-USB (micro-USB cable included with each system)

    USB Ports

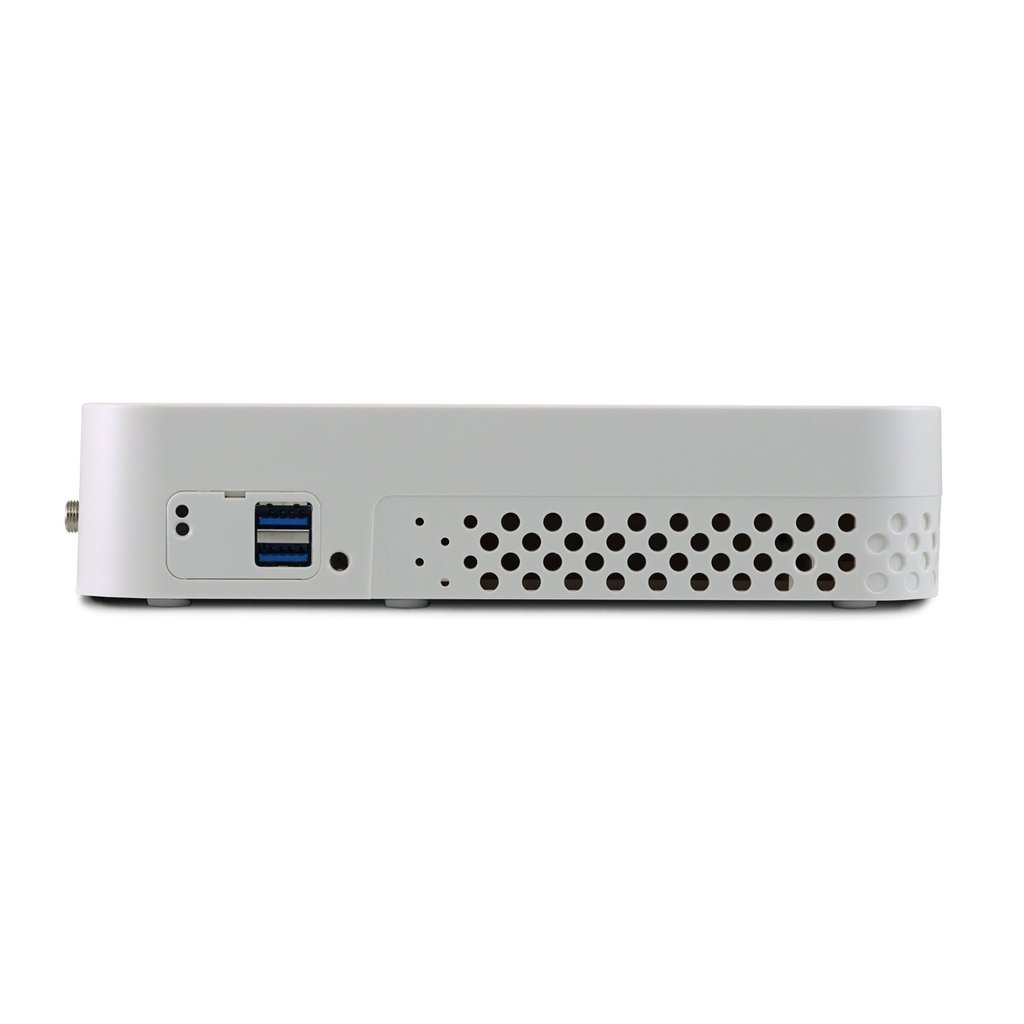

    2x USB 3.0 jacks (USB-A female) Located on left side rear when viewed from system front

    LED

    3x 4-color LEDs (RGB + amber) Software / bootloader controllable via Microchip MCU

    Enclosure

    Desktop - Aluminum, plastic, and steel enclosure.

    10 x 7.88 x 1.88 inches

    254 x 200 x 47.63 mm

    Mounting

    Optional wall or rack mount kit

    Cooling

    Passive

    Power

    External ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 5.0A (60W), threaded (locking) barrel connector.

    Specifications (not final):

    - AC Inlet: IEC320-C7 (2 PIN) - Power Cord: One US, UK, EU or ANZ power cord included

    - US Power Cord: NEMA 1-15-P to IEC320-C7

    - UK Power Cord: BS 1363 to IEC320-C7

    - EU Power Cord: CEE7/16 to IEC320-C7

    - ANZ Power Cord: AS 3112 (ungrounded) to IEC320-C7

    Environmental

    0°C (32°F) to 40°C (104°F) - ambient

    CertificationsFCC (Class B), IEC / CE, CB, UL, RoHS, RCM
