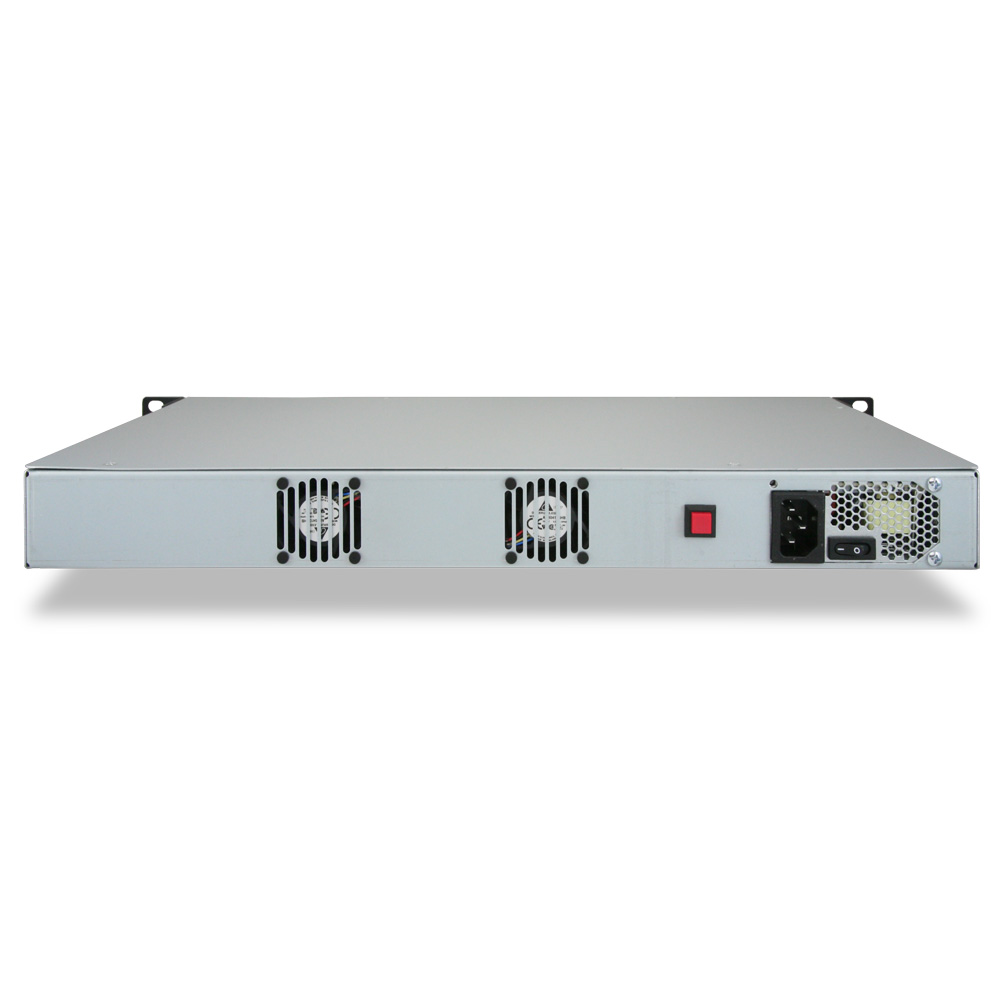

Netgate 7100 BASE pfSense+ Security Gateway
Netgate 7100 BASE pfSense+ Security Gateway
8GB RAM / 32GB eMMC Flash
2 x 10GbE SFP+ / 8 x 1GbE (Switched)
1 x USB 3.0 / 2 x USB 2.0 / MiniUSB Console
All Prices ex GST.
Checkout for GST and shipping costs.
We aim to dispatch all in-stock orders within 24 hours.
10 Interfaces
Flexible Network Configuration for Security or Multi-Tenanting
The newest product in the Netgate lineup, the XG-7100 provides the highest number of network interfaces to allow you ultimate flexibility in segregating & firewalling many network segments. The kind of power delivered in this appliance is typically only available in very high-end proprietary devices with an unaffordable price tag.
| CPU | Intel "Denverton" Atom C3558, 2.2 GHz with Intel QuickAssist and AES-NI |
|---|---|
| CPU Cores | Four Cores |
| Networking | 2x 10GbE Intel x553 SFP+ Ports 8-port 1Gbps Marvell 88E6190 switch, uplinked at 5 Gbps (2x 2.5 Gbps) to Intel SoC for LAN Virtual Machine Device Queues reduce I/O overhead |
| Storage | 32 GB eMMC onboard Additional storage via M.2 SSD with 7100 MAX |
| Memory | 8 GB DDR4 (expandable to 24GB via SODIMM with 7100 MAX) |
| Expansion | 1x PCI-E 3.0 4x slot 1x M.2 M-Key 2280 supported 4x SATA3 |
| Console Port | 1x mini-USB Console |
| USB Ports | 1x USB 3.0 ports 2x USB 2.0 ports |
| LED | Power/Status/SATA Activity |
| Enclosure | 19" 1U Rack Mount |
| Form Factor | 1U 1.75" x 19" x 8.5" 1U Rack Mount |
| Cooling | 2x Low-noise active control chassis fans |
| Power | 100-240V, 50-60Hz, 1.5-3A Internal Power Supply |
| Environmental | 0°C to 40°C Operating Temp 10% to 90% Operating Relative Humidity (non-condensing) |
| Power Consumption | TBD |
| Certifications | FCC, CE, RoHS, REACH, IEC 60950, EN55022, EN 61000-3-3, EN 610000-3-2, EN55024, CISPR 22 |
