Note: There is currently a supply chain issue with this unit. Current ETA Late May
Ships with ANZ Power supply (IEC "I" style unearthed Mains plug, IEC "C8" inlet on power supply)

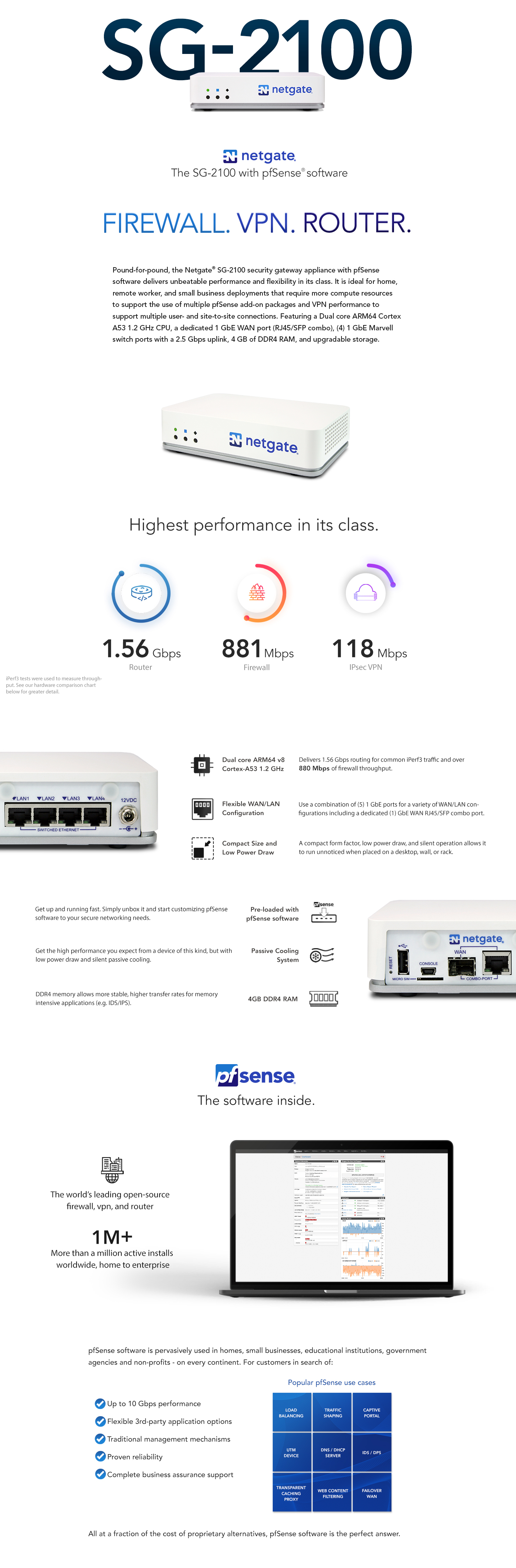

The SG-2100 is Netgate's latest appliance. Perfectly placed between the SG-1100 and SG-3100, the SG-2100 boasts an RJ45/SFP Combo port to suit any WAN uplink!
HARDWARE SPECIFICATIONS:
| CPU | Marvell Armada 3720 (88F3720) ARMv8-A 64-bit Cortex A53 @ 1.2GHz with NEON SIMD and FPU |
|---|---|
| CPU Cores | Dual Core |
| Networking | One 1 Gigabit Ethernet WAN port (RJ45 / SFP Combo) Four 1 Gigabit Ethernet LAN ports (Marvel 88E6141 switch, uplink at 2.5 Gbps) LAN ports can be repurposed for additional WAN ports |
| Storage | 8GB eMMC Flash on board, factory-upgradable to 32 GB M.2 SATA 2242 Solid State Drive (not NVMe compatible) |
| Memory | 4 GB DDR4 (not expandable) |
| Expansion | 1x M.2 'B' key sockets (SSD, LTE) 1x miniPCIe (WiFi) microSIM slot |
| Console Port | MiniUSB (console cable included) |
| USB Ports | 1x 2.0 port |
| LED | 3 full color RGB LEDs (Pattern info here) |
| Enclosure | Desktop 1.7" (42.2 mm) tall x 4.25" (108 mm) deep x 6.8" (172.7 mm) wide with integrated keyholes for easy wall mounting |
| Cooling | Passive |
| Power | External ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 2.0A, threaded barrel connector AC Inlet: IEC320-C7 (2 PIN) One US, UK, EU or ANZ power cord included US Power Cord: NEMA 1-15P to IEC320-C7 UK Power Cord: BS 1363 to IEC320-C7 EU Power Cord: CEE7/16 to IEC320-C7 ANZ Power Cord: AS 3112 (ungrounded) to IEC320-C7 |
| Environmental | 32°F (0°C) to 122°F (50°C) |
| Certifications | CE, FCC (Class B), RoHS, UL, RCM, VCCI |
